A Comprehensive Guide to Wind Turbine System

Table of Contents

“The Wind is an untamed and unharnessed force”

Every 24 hours, the wind generates enough kinetic energy to produce roughly 35 times more electricity than humanity uses each day. And unlike coal, natural gas, or oil, this resource is totally renewed each day. So how can we harness this incredible amount of energy? And is it possible to create a world powered entirely by wind? Interested to know about mesmerizing wind turbines and their working? Without any further delay, let’s begin with our topic!

What is a wind turbine?

A Wind turbine is an efficient machine that converts wind energy into mechanical energy and this mechanical energy is further converted into electrical energy with the help of a generator. The basic principle of wind energy is simple. A series of sails or blades mounted around a rotor catches the wind. And translates its kinetic energy into rotational energy. Traditional windmills use that rotational energy to grind wheat or pump water. But in a modern wind turbine, it turns a generator that creates electricity.

This conversion from wind to rotational energy to electricity has defined wind turbines since their invention in the late 19th century. Three primary factors determine just how much energy wind turbines can produce:

1.The size and orientation of the blades
2.The blade’s aerodynamic design
3.Amount of wind turning the rotor

How many types of wind turbines are there?

Wind turbines are of two types which are subdivided. Read on to know what these are:

1. Horizontal Axis Type

Horizontal axis-type wind turbines look like propeller airplane engines. They are mostly equipped with three blades. Their propellers are similar to airplane propellers. They are massive and are equipped with blades that are more than 100 feet in length. Horizontal designs of wind turbines allow blades to capture the wind’s full force by tracking the wind’s direction and turning to face it.  The size of the horizontal axis type can vary. They can be as long as 20-story buildings. The length and size of propellers are designed to be massive because wind turbines with longer blades generate more electricity than small wind turbines.

Horizontal axis type wind turbine is further divided into the following types:

  1. Multi Blade type
  2. Sail type
  3. Propeller type

2. Vertical Axis Type

Vertical axis-type wind turbines are similar to eggbeaters. The blades in the vertical axis type wind turbine are attached at the bottom and at the top of the vertical rotor. Vertical-axis type wind turbine is like a massive eggbeater and is the most common type of vertical-axis designed turbine. They pick up wind from any direction but with much less efficiency. The length and diameter of such turbines can vary.

Some versions are 50 feet wide and 100 feet tall. They are less popular compared to horizontal axis type wind turbines because they are not as efficient as the horizontal ones.

Vertical-axis type wind turbine is subdivided into the following types:

1.Savonius type
2.Darrieus type

What are the parts and working of wind turbines?

A wind turbine is made up of several important parts. A fault in one part can result in the malfunctioning of the entire system. Some  important parts of wind  turbines are listed hereunder:

1. Blades:

Blades in a wind turbine play an important role in capturing wind energy and converting it into rotational motion. They are designed to efficiently harness the kinetic energy of the wind. And then transfer it to the turbine’s rotor. The size, shape, and material of the blades greatly influence the performance of the turbine and overall efficiency.

2. Rotor

The rotor of a wind turbine consists of the blades attached to a central hub. It is the main component that is responsible for capturing the kinetic energy of the wind. Besides capturing, it also converts it into rotational motion. As the rotor spins, it drives the generator and produces electricity. It should be noted that the size and design of the rotor impact the turbine’s power output and efficiency.

3. Gear Box

The gearbox in a wind turbine plays an important role in increasing the rotational speed of the rotor. This is important to match the optimal speed for electricity generation. It efficiently transfers the slower rotational motion of the rotor to a higher speed required by the generator. Thus, enhancing the overall efficiency of power generation. It also allows for adjustments to optimize power production under varying wind conditions.

4. Generator

The generator in a wind turbine converts the rotational energy from the turbine’s rotor into electrical energy. It works on electromagnetic induction principles. The electromagnetic induction principle states that “the spinning motion of the rotor inside a magnetic field induces an electric current in wire coils, generating electricity”. The generator’s output voltage and frequency are controlled to match the grid requirements for efficient power transmission and distribution.

5. Tower

The tower of a wind turbine provides structural support for the entire turbine system. The tower helps elevate the rotor and blades to optimal heights for capturing wind energy. It also houses components such as the generator gearbox, and control systems. The height of the tower influences the turbine’s exposure to wind speeds and consequently affects its power output. Towers are designed to withstand various environmental conditions and ensure the stability and safety of the wind turbine installation.

General Working Mechanism of Wind Turbine:

The energy in the wind turns the blades around the rotor. The rotor is connected to the shaft which spins the generator to create the electricity. The wind runs through the turbine’s blade thus decreasing the air pressure on one side of the blade. This causes a difference in air pressure to both sides of the blades thus creating a force on the blade.

The intensity of the force rotates the rotor. However, the slow rotation speed of the blade is not enough to produce electricity. For this reason, a gearbox is connected between the rotor and the generator. This generator transforms the aerodynamic force into electrical force. The housing holding the gearbox and the generator is called the nacelle which can move according to the direction of the wind.

If the direction of the wind changes, the velocity sensor located on the top of the nacelle sends the signal to the yawning mechanism at the base of the nacelle. This mechanism then moves the blade to face the proper wind direction. Also, the blades can rotate using a blade-tilting mechanism to align themselves with the proper angle of the wind. In this way, wind turbines can convert wind energy into electricity.

What are the applications of wind turbines?

Wind turbines have various applications, including:

1.Wind turbines are primarily used to generate electricity by harnessing wind energy. They can be installed individually or as part of large wind farms to supply power to homes, businesses, and communities.

2.Wind turbines are utilized in off-grid or remote locations where access to traditional power sources is limited or costly. They provide a reliable source of electricity for off-grid homes, cabins, telecommunications towers, and remote industrial sites.

3.Wind turbines can be coupled with water pumps to lift water from wells or reservoirs for irrigation, livestock watering, and other agricultural or rural water supply needs.

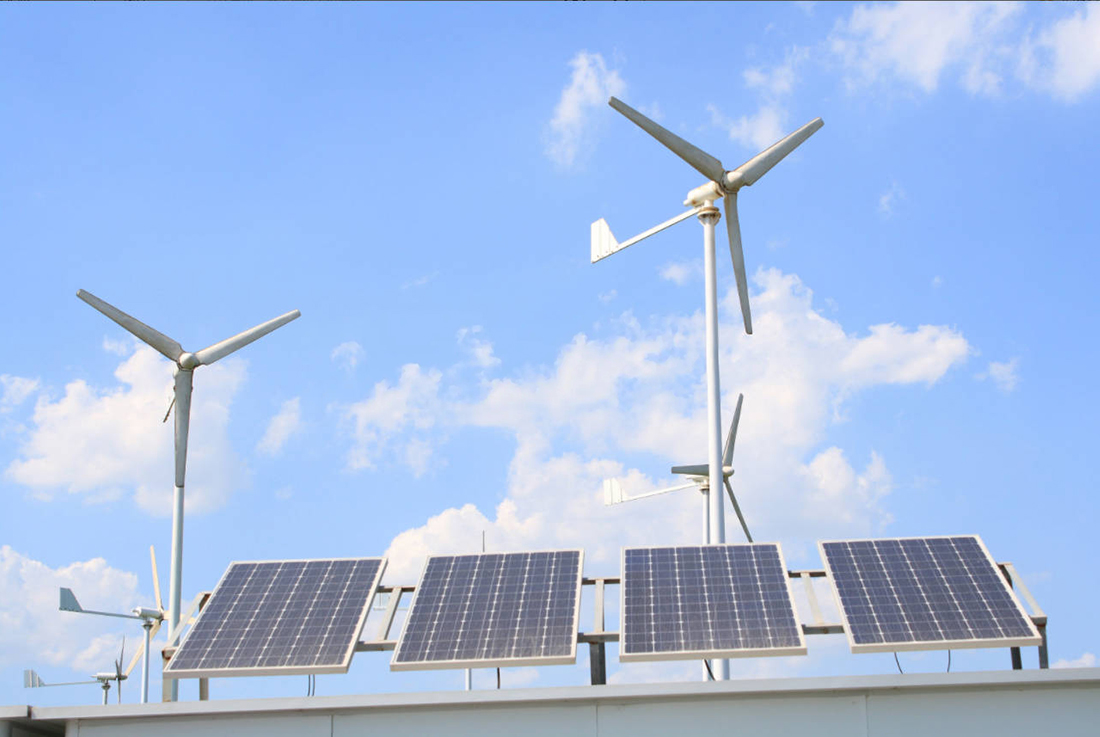

4.Wind turbines are often integrated into hybrid energy systems along with solar panels, batteries, and diesel generators to provide a more reliable and sustainable power supply, especially in remote areas or islands.

5.In coastal regions with abundant wind resources and water scarcity, wind turbines can power desalination plants to produce fresh water from seawater through processes like reverse osmosis.

6.Wind turbines can be incorporated into microgrid systems to provide localized power generation and improve energy resilience in communities, campuses, military bases, and industrial facilities.

7.Small-scale wind turbines installed on rooftops or in urban areas contribute to distributed generation, diversifying the energy mix and reducing reliance on centralized power plants.

8.Wind turbines are also used for research purposes, including studying wind patterns, turbine performance, and technological advancements to improve efficiency, reliability, and environmental impact.

What are the advantages of wind energy?

Wind energy entertains users with numerous advantages. Some are  listed hereunder:

1. Wind is a reliable and renewable energy resource.

2. Wind energy reduces carbon emissions

3. Wind energy is cost-effective

4. The operating cost of wind energy is zero.

The Bottom Line:

Exploring wind energy and wind turbines shows us how we can use the power of the wind for good. The article has explained wind turbines in simple terms, from how they work to what they’re used for. By understanding parts like blades, rotors, and gearboxes, we get a clearer picture of how these machines do their job.

Learning about different types of wind turbines and their benefits helps us see how they fit into our world. They’re not just for making electricity; they can also help pump water, power remote places, and even make fresh water from the sea.

And let’s not forget the good things about wind energy—it’s clean, it’s cheap, and once it’s up and running, it doesn’t cost much to keep it going. Wind energy is like a breath of fresh air for our planet, showing us a way to power our lives without hurting the environment.

So, if you’re thinking about getting a wind turbine, it’s a smart move to reach out to professionals like AUSEUSA. They can help you make the right choices and get the most out of this amazing technology. With wind energy, we’re not just blowing in the wind—we’re moving towards a brighter, cleaner future.
